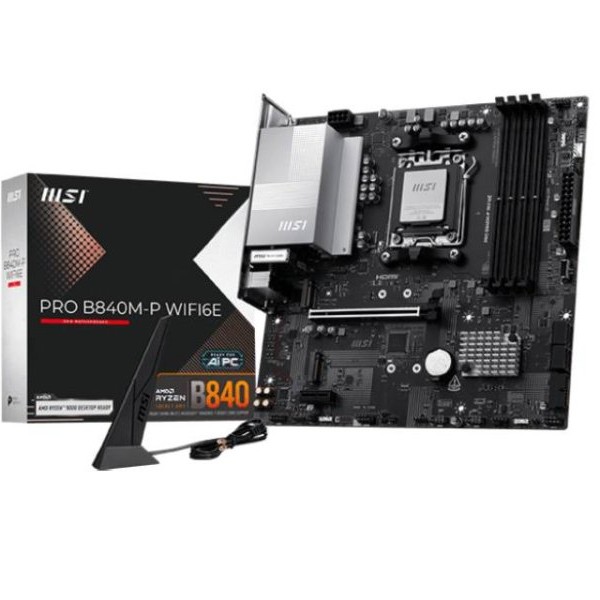

MSI PRO B840M-P WIFI6E
from
$20,560.00
Ex Tax: $20,560.00
- Stock: In Stock
- Brand: MSI
- Model: 4711377361804
- Weight: 5.00
- SKU: 315228
- EAN: 4711377361804
- MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
$6,670.00
Ex Tax:$6,670.00
$6,440.00
Ex Tax:$6,440.00
$21,670.00
Ex Tax:$21,670.00
$43,000.00
Ex Tax:$43,000.00
$6,610.00
Ex Tax:$6,610.00
$12,820.00
Ex Tax:$12,820.00
$12,140.00
Ex Tax:$12,140.00
$12,680.00
Ex Tax:$12,680.00
$19,980.00
Ex Tax:$19,980.00
$17,490.00
Ex Tax:$17,490.00
$20,120.00
Ex Tax:$20,120.00
$15,390.00
Ex Tax:$15,390.00
$15,390.00
Ex Tax:$15,390.00
$20,020.00
Ex Tax:$20,020.00
$19,220.00
Ex Tax:$19,220.00
MSI PRO B840M-P WIFI6E
| Tip procesora | Procesorsko ležište (socket) AMD AM5 Čipset AMD B840 |
| Format ploče | Format microATX Dimenzije 243.84mm x 243.84mm |
| Memorija | Tip memorije DDR5 Memorijski slotovi 4 Podržane memorije 4.800MT/s - 5.600MT/s (JEDEC), 5.600MT/s - 8.000MT/s (OC) Maksimalna ukupna memorija 256GB Ostale osobine Podrška za Unbuffered ECC memoriju, Podrška za non-ECC UDIMM memory, Dual Channel, Podrška za CUDIMM, Podrška za AMD POR Speed and JEDEC Speed, 1.600MHz je moguće postići samo uz 22nm procesore |
| Slotovi za proširenje | PCI Express x16 slot 1x PCI Express 4.0 (x16/x8/x4 mode) PCI Express x1 slot 1x PCI Express 3.0 Skladišni interfejs SATA priključci (ukupno) 4 SATA priključci 4x SATA III 6.0Gbs Broj M.2 slotova 2 Podržani M.2 formati 2x 2260 / 2280 (podrška za PCIe 4.0 x4 mod) RAID RAID 0, RAID 1, RAID 10 |
| Zvučna kartica | Broj kanala 7.1 Model Realtek ALC897 Codec Napomena High Definition |
| Ostalo | Grafika Upotreba grafike iz procesora Mreža Žična mreža (LAN) 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Model Realtek 8125D Wi-Fi Da Wi-Fi standard Wi-Fi 6E, IEEE 802.11 a/b/g/n/ac/ax 2.4/5/6GHz Bluetooth Da Bluetooth verzija 5.3 Priključci na zadnjem panelu Broj HDMI priključaka 1 HDMI priključci 1x HDMI Ukupno USB priključaka 8 Ukupno USB-C priključaka 1 USB-A priključci 4x USB 2.0, 2x USB 5Gbps (3.2 Gen 1), 1x USB 10Gbps (3.2 Gen 2) USB-C priključci 1x USB 10Gbps (3.2 Gen 2) RJ-45 (LAN) 1 Audio 3x 3.5mm Ostali priključci BIOS Flashback taster, 1x Clear CMOS dugme, 2x Wi-Fi antenna connectors Unutrašnji priključci Naponski priključci 1x Power Connector (CPU_PWR), 1x Power Connector(ATX_PWR) USB-A 4 x podrška za 1 USB 2.0 port, 2 x podrška za 1 USB 5Gbps port USB-C 1 x podrška za 1 USB 5Gbps port Audio 1x Front panel audio Ostali priključci 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x TPM pin header(Support TPM 2.0), 1x CPU Fan, 1x RGB LED connector (JRGB), 1x Tuning Controller connector (JDASH), 1x Combo Fan (Pump_Sys Fan), 3x Addressable V2 RGB LED connector (JARGB_V2), 3x System Fan, 1x Com Port (JCOM) Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu Ostale karakteristike Podržane tehnologije Audio Boost, Core Boost, Extended Heatsink Design, AI Engine, AI Boost, EZ PCIe Clip II, Pre-mounted I/O shield, Frozr AI Cooling, Lightning Gen 4, AI LAN Manager Pakovanje SATA kabl, EZ M.2 clip II Remover, 1x EZ M.2 clip II, 1x EZ Wi-Fi Antenna |
| Zakonska saobraznost | 36 meseci |
