GEWISS FID AC Sklopka GWD4122, 40A bela
from
$4,060.00
Ex Tax: $4,060.00
- Stock: In Stock
- Brand: GEWISS
- Model: 8011564825963
- Weight: 5.00
- SKU: 188665
- EAN: 8011564825963
- MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
$6,360.00
Ex Tax:$6,360.00
$11,980.00
Ex Tax:$11,980.00
$2,130.00
Ex Tax:$2,130.00
$2,730.00
Ex Tax:$2,730.00
$2,510.00
Ex Tax:$2,510.00
$2,130.00
Ex Tax:$2,130.00
$7,510.00
Ex Tax:$7,510.00
$14,180.00
Ex Tax:$14,180.00
$2,650.00
Ex Tax:$2,650.00
$3,070.00
Ex Tax:$3,070.00
$3,040.00
Ex Tax:$3,040.00
$4,350.00
Ex Tax:$4,350.00
$4,170.00
Ex Tax:$4,170.00

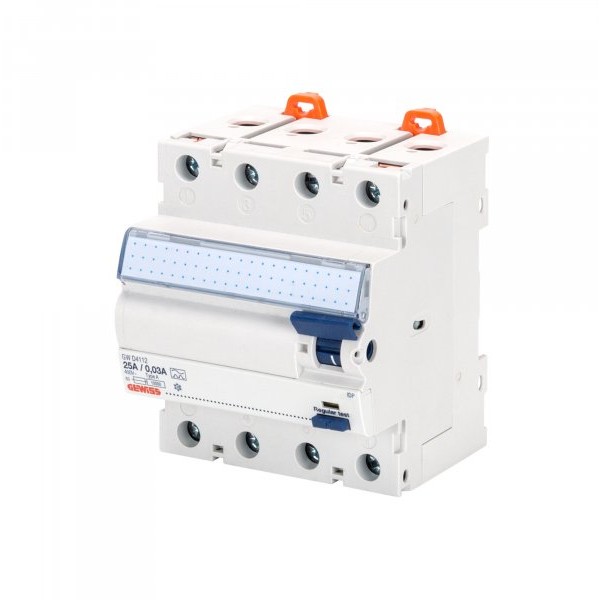

GEWISS FID AC Sklopka GWD4122, 40A bela
| Tip | Sklopka |
| Karakteristike | Šifra: IDP Broj stubova: 4P Broj modula: 4 Nominalna struja: 40 A Nominalna rezidualna radna struja: 30 mA Tip: AC Nominalni napon (EN/IEC 61008-1, 61008-2-1): 400/415 V Standard: IEC/EN 61008-1, IEC/EN 61008-2-1 Nominalna frekvencija (Hz): 50/60 Hz Napon izolacije: 500 V Nominalni impulsni otporni napon: 4 kV Kategorija prenapona: III Nivo imuniteta (8/20 ms): 250 A Segmentni kruti kabl: <=1x35 - <=2x16 - <=1x16+2x10 mm² Presečni fleksibilni kabl: <=1x35 - <=2x16 - <=1x16+2x10 mm² Nominalni moment zatezanja: 3 Nm Dvostruka veza: DA (up stream i dovn stream) Radna temperatura: -25 +60°C (40°C sa smanjenjem kapaciteta) Temperatura skladištenja: -40 +70°C Električna izdržljivost: ≥ 10.000 Mehanička izdržljivost: ≥ 20000 Kompatibilnost pomoćnih uređaja: Da Kompatibilnost ponovnog pokretanja: Da Montažna pozicija: Bilo koja Boјa proizvoda Bela |
