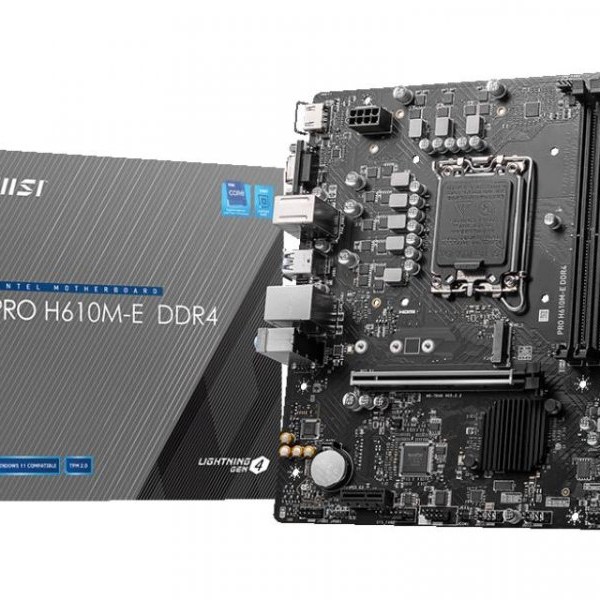

MSI PRO H610M-E DDR4

MSI PRO H610M-E DDR4
MSI PRO H610M-E DDR4
from
$7,280.00
Ex Tax: $7,280.00
  • Stock: In Stock
  • Brand: MSI
  • Model: 4711377002660
  • Weight: 5.00
  • SKU: 160071
  • EAN: 4711377002660
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

MSI PRO H610M-E DDR4


Tip procesora Procesorsko ležište (socket)       LGA1700
Čipset   Intel H610
Format ploče Format microATX
Dimenzije            236mm x 200mm
Pakovanje           Full box retail
Memorija Tip memorije     DDR4
Memorijski slotovi           2x DDR4
Podržane memorije        2.133MHz, 2.666MHz, 3.200MHz
Maksimalna ukupna memorija   64GB
Ostale osobine  Podrška za non-ECC UDIMM memory, Dual Channel
Slotovi za proširenje PCI Express x16 slot        1x PCI Express 4.0 (x16 mode)
PCI Express x1 slot           1x PCI Express 3.0
Ostali slotovi      4x SATA 6.0Gb/s ports
Skladišni interfejs
SATA priključci (ukupno)               4
SATA priključci   4 x SATA 6Gb/s
Ostali skladišni interfejs 1x M.2
Zvučna kartica Broj kanala          8 (7.1)
Model   Realtek® ALC897 Codec
Ostalo Procesorsko ležište (socket)       LGA1700
Čipset   Intel H610
Mreža
Žična mreža (LAN)           1x 10/100/1.000Mbps (Gigabit ethernet)
Model   Realtek®
Priključci na zadnjem panelu
HDMI priključci  1
VGA D-sub          1
PS/2       1 (tastatura ili miš)
Ukupno USB priključaka                6
Ukupno USB C priključaka            2
USB 3.2 priključci              1 (Tip A) Gen1
USB 2.0 priključci              2
RJ-45 (LAN)         1
Audio    3x 3.5mm
Unutrašnji priključci
Naponski priključci          1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
USB 3.2 1 (podrška za 2 USB 3.2 Gen 1 porta)
USB 2.0 1 (podrška za 4 USB 2.0 porta)
Audio    1x Front panel audio
Serijski port        1
Ostali priključci  TPM modul konektor, 1x Chassis Intrusion connector, 2x System Fan Connector (4-pin), 4 x EZ Debug LED, 1x 4-pin RGB LED connector, 1 x Clear CMOS button, 2x System Panel connector, 1 x 4-pin CPU Fan conector
Napomena         Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Garancija 36 meseci
