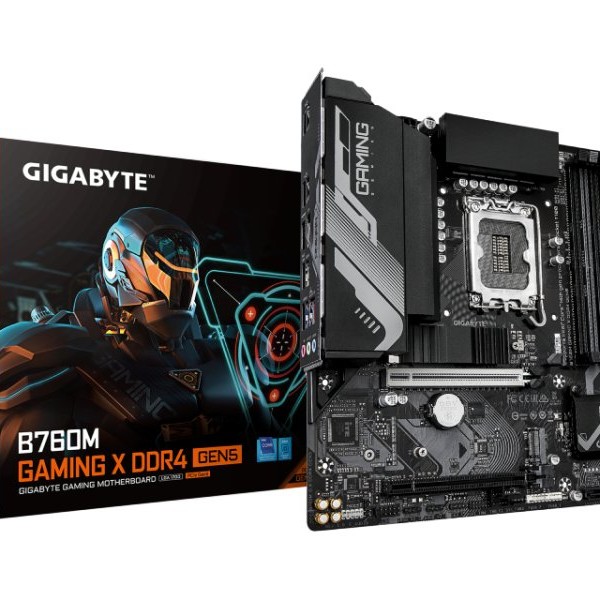

GIGABYTE B760M G X DDR4 GEN5

GIGABYTE B760M G X DDR4 GEN5
GIGABYTE B760M G X DDR4 GEN5
from
$16,780.00
Ex Tax: $16,780.00
  • Stock: In Stock
  • Brand: GIGABYTE
  • Model: 4719331874087
  • Weight: 5.00
  • SKU: 339429
  • EAN: 4719331874087
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

GIGABYTE B760M G X DDR4 GEN5


Tip procesora Procesorsko ležište (socket) Intel 1700
Čipset Intel B760
Format ploče Format              microATX
Dimenzije        244mm x 244mm
Memorija Tip memorije  DDR4
Memorijski slotovi      4
Podržane memorije   Podržava DDR5 memorije do 5.333MT/s (O.C.)
Maksimalna ukupna memorija         128GB
Ostale osobine            Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Dual Channel
Slotovi
PCI Express x16 slot  1x PCI Express 5.0 (x16 mode), 1x PCI Express 3.0 (x4 mode)
PCI slot             2
Slotovi za proširenje SATA priključci (ukupno)        4
SATA priključci             4x SATA 6GB/s
Broj M.2 slotova          2
Podržani M.2 formati 1x 2280 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod)
RAID    RAID 0, RAID 1, RAID 5, RAID 10
Zvučna kartica Broj kanala      2/4/5.1/7.1
Model  Realtek
Napomena      High Definition, Podrška za S/PDIF izlaz
Ostalo Grafika              Upotreba grafike iz procesora
Mreža
Žična mreža (LAN)      2.5GBase-T (Gigabit)
Model  Realtek
Priključci na zadnjem panelu
Broj DisplayPort priključaka 1
DisplayPort priključci              1x DisplayPort
Broj HDMI priključaka             1
HDMI priključci           1x HDMI
Ukupno USB priključaka        8
USB-A priključci          3x USB 5Gbps (3.2 Gen 1), 5x USB 2.0
RJ-45 (LAN)     1
Audio   3x 3.5mm
Unutrašnji priključci
Naponski priključci   1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
USB-A 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
USB-C 1 x podrška za 1 USB 10Gbps port
Audio   1x Front panel audio
Serijski port    1
Ostali priključci           1 x front panel header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 4 x SATA 6Gb/s, 1 x S/PDIF Out header, 1 x RGB LED strip header, 1 x reset jumper, 1 x CPU fan header, 3 x system fan headers, 2 x M.2 Socket 3, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 3 x addressable LED strip headers, 2 x Thunderbolt™ add-in card connectors
Napomena      Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije              Q-Flash Plus, Smart Backup, Norton Internet Security (OEM verzija), iTE I/O Controller Chip, Voltage detection, Detekcija Temperature, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, AMI UEFI BIOS
Zakonska saobraznost 36 meseci
