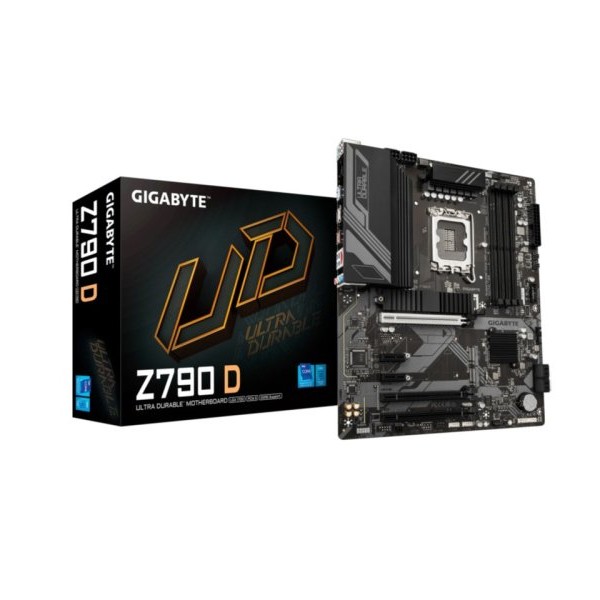

GIGABYTE Z790 D rev. 1.x

GIGABYTE Z790 D rev. 1.x
GIGABYTE Z790 D rev. 1.x
from
$22,540.00
Ex Tax: $22,540.00
  • Stock: In Stock
  • Brand: GIGABYTE
  • Model: 4719331861186
  • Weight: 5.00
  • SKU: 232538
  • EAN: 4719331861186
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

GIGABYTE Z790 D rev. 1.x


Tip procesora Procesorsko ležište (socket): LGA1700
Čipset: Intel Z790
Format ploče ATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4 x DDR5
Podržane memorije: DDR5-7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400
Maksimalna ukupna memorija: 192GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Dual Channel
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 3.0, 1x PCI Express 4.0, 1x PCI Express 5.0
PCI Express x1 slot: 2x PCI Express 3.0
Zvučna kartica Broj kanala: 2/4/5.1/7.1
Model: Realtek
Napomena: High Definition, Podrška za S/PDIF izlaz
Ostalo Skladišni interfejs
SATA priključci (ukupno): 6
SATA priključci: 6 x SATA 6Gb/s
Ostali skladišni interfejs: 3x M.2
RAID: RAID 0, RAID 1, RAID 5, RAID 10
Mreža
Žična mreža (LAN): 1x Realtek 2.5Gb Ethernet
Model: Realtek
Priključci na zadnjem panelu
HDMI priključci: 1x HDMI
Ukupno USB priključaka: 8
Ukupno USB-C priključaka: 1
USB 3.2 priključci: 1 (Tip A) Gen2, 4 x Gen1
USB 2.0 priključci: 2
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Unutrašnji priključci
Naponski priključci: 1x 4 pin 12V Power Connector, 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
USB 3.2: 1 (Tip C) Gen1, 1x Gen1
USB 2.0: 2
Audio: 1x Front panel audio
Serijski port: 1
Ostali priključci: 1x TPM Header, 3x System Fan header, 1 x front panel header, 1 x Clear CMOS jumper, 1 x water cooling CPU fan header, 1 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 1 x Q-Flash Plus button, 6 x SATA 6Gb/s connectors, 1 x S/PDIF Out header, 2 x RGB LED strip headers, 1 x reset jumper, 1 x CPU fan header, 1 x reset button, 2 x Thunderbolt add-in card connectors, 3 x M.2 Socket 3 connectors
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije: GIGABYTE Control Center, Q-Flash Plus, Smart Backup
Fizičke karakteristike
Dimenzije: 305mm x 244mm
Fiksirajući otvori: 9
Zakonska saobraznost 36 meseci
