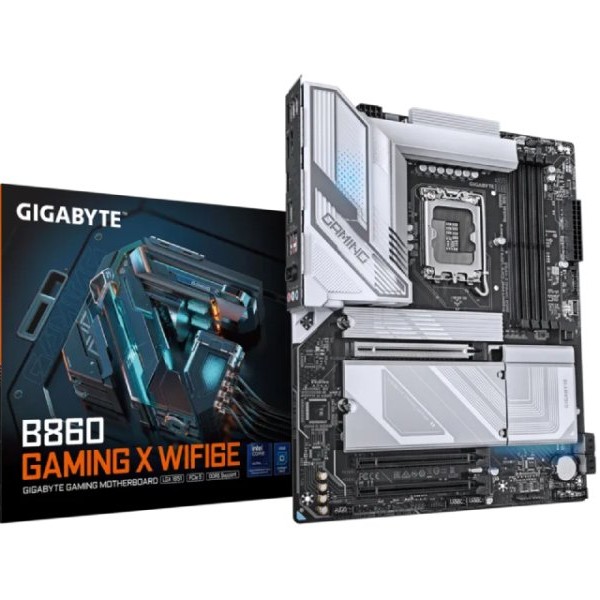

GIGABYTE B860 GAMING X WIFI6E rev. 1.0 matična ploča

GIGABYTE B860 GAMING X WIFI6E rev. 1.0 matična ploča
GIGABYTE B860 GAMING X WIFI6E rev. 1.0 matična ploča
from
$27,010.00
Ex Tax: $27,010.00
  • Stock: In Stock
  • Brand: GIGABYTE
  • Model: 4719331866532
  • Weight: 5.00
  • SKU: 334702
  • EAN: 4719331866532
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

GIGABYTE B860 GAMING X WIFI6E rev. 1.0 matična ploča


Tip procesora Procesorsko ležište (socket): Intel 1851
Čipset: Intel B860
Format ploče ATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 7.200MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 5.600MT/s, 7.600MT/s (O.C.), 7.400MT/s (O.C.), 7.800MT/s (O.C.), 8.000MT/S (O.C.), 7.950MT/s (O.C), 7.900MT/s (O.C), 8.266MT/s (O.C), 8.200MT/s (O.C.), 8.600MT/s (O.C.), 9.066MT/s (O.C.), 8.400MT/s (O.C.), 6.400MT/s, 8.800MT/s (O.C.)
Maksimalna ukupna memorija: 256GB
Ostale osobine: Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory, Dual Channel, XMP
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 5.0, 2x PCI Express 4.0
PCI slot: 3
Ostali slotovi: 3x M.2 slot
Zvučna kartica Broj kanala: 2/4/5.1/7.1
Napomena: High Definition, Podrška za S/PDIF izlaz
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 2x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 2580 / 22110 / 25110 (podrška za PCIe 5.0 x4 mod)
RAID: RAID 0, RAID 1, RAID 5, RAID 10
Mreža
Žična mreža (LAN): 10/100/1000/2500 Mbps (2.5GbE)
Wi-Fi standard: Intel Wi-Fi 6E
Bluetooth verzija: 5.3
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort 2.1
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
Ukupno USB priključaka: 9
Ukupno USB-C priključaka: 1
USB-A priključci: 1x USB 10Gbps (3.2 Gen 2), 2x USB 5Gbps (3.2 Gen 1), 5x USB 2.0
USB-C priključci: 1x USB 40Gbps (USB 4)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: 2x antenski
Unutrašnji priključci
Naponski priključci: 1 x 24 pin Main Power connector, 1 x 8-pin ATX 12V power connector
USB-A: 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
USB-C: 1 x podrška za 1 USB 10Gbps port
Audio: 1x S/PDIF izlaz, 1x Front panel audio
Serijski port: 1
Paralelni port: 1
Ostali priključci: 1x TPM Header, 1 x front panel header, 1 x Clear CMOS jumper, 1 x system fan/water cooling pump headers, 1 x Q-Flash Plus button, 1 x RGB LED strip header, 1 x 4-pin CPU Fan header, 1 x reset jumper, 3x addressable RGB Gen2 LED strip headers, 3 x system fan headers, 1 x CPU/Water Pump Fan Connector (4-pin)
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Fizičke karakteristike
Dimenzije: 305 x 244 mm
Zakonska saobraznost 36 meseci
