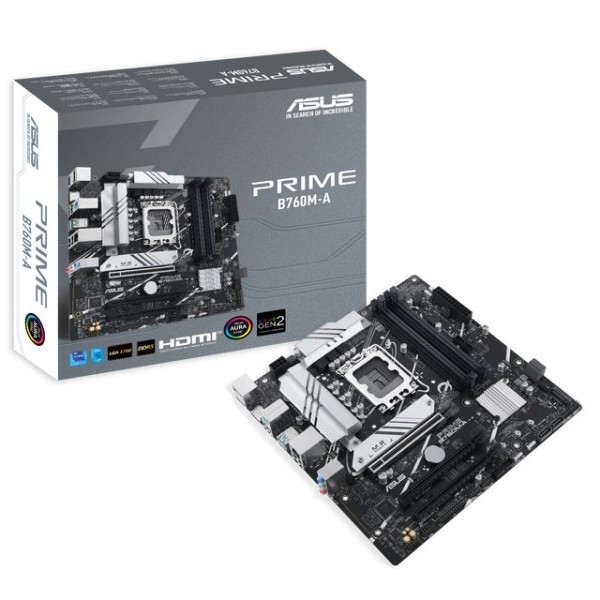

ASUS PRIME B760M-A-CSM

ASUS PRIME B760M-A-CSM
Proizvod trenutno nije dostupan
ASUS PRIME B760M-A-CSM
from
$14,920.00
Ex Tax: $14,920.00
  • Stock: Proizvod trenutno nije dostupan
  • Brand: ASUS
  • Model: 4711387140710
  • Weight: 5.00
  • SKU: 268279
  • EAN: 4711387140710
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME B760M-A-CSM


Tip procesora Procesorsko ležište (socket)       Intel 1700
Čipset   Intel B760
Format ploče Format microATX
Dimenzije            244mm x 244mm
Memorija Tip memorije     DDR5
Memorijski slotovi           4
Podržane memorije        6.000MT/s (O.C.), 5.800MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 5.600MT/s, 5.400MT/s, 5.200MT/s, 5.000MT/s, 4.800MT/s, 7.200MT/s+ (O.C.)
Maksimalna ukupna memorija   128GB
Ostale osobine  Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory
Slotovi za proširenje PCI Express x16 slot        1x PCI Express 4.0 (x16 mode), 1x PCI Express 4.0 (x4 mode), 1x PCI Express 4.0 (x1 mode)
Skladišni interfejs
SATA priključci (ukupno)               4
SATA priključci   SATA III 6Gbps
Broj M.2 slotova               2
Podržani M.2 formati     2x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x4 mod)
RAID      RAID 0, RAID 1, RAID 5, RAID 1
Zvučna kartica Broj kanala          8 (7.1)
Model   Realtek
Napomena         High Definition, Audio Shielding, Dedicated audio PCB layers
Ostalo Mreža
Žična mreža (LAN)           2.5GBase-T (Gigabit)
Model   Realtek
Priključci na zadnjem panelu
Broj DisplayPort priključaka         1
DisplayPort priključci      1x DisplayPort 1.4
Broj HDMI priključaka    2
HDMI priključci  2x HDMI 2.1
PS/2       1 (tastatura ili miš)
Ukupno USB priključaka                6
USB-A priključci 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0
RJ-45 (LAN)         1
Audio    3x 3.5mm
Ostali priključci  1 x Wi-Fi Module
Unutrašnji priključci
Naponski priključci          1x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector
USB-A   1 x podrška za 1 USB 2.0 port, 2 x podrška za 4 USB 2.0 porta, 2 x podrška za 1 USB 5Gbps port
USB-C   1 x podrška za 1 USB 5Gbps port
Audio    1x S/PDIF izlaz, 1x Front panel audio
Ostali priključci  4 x SATA 6Gb/s, 1 x 4-pin CPU OPT Fan header, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x 4-pin CPU Fan header, 1 x 14-1 pin SPI TPM header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 1 x AURA RGB header, 2 x 4-pin Chassis Fan headers, 1 x LPT Header, 2 x M.2 slots
Ostale karakteristike
Podržane tehnologije    DIGI+VRM, LANGuard, Overvoltage Protection, Q-DIMM, Q-Slot, Q-LED Core, SafeSlot Core+, ProCool, UEFI Bios, VRM heatsink design, Aura RGB header, Addressable Gen 2 headers, M.2 heatsink, Stainless-Steel Back I/O
Zakonska saobraznost 36 meseci
