ASROCK B760M-HDV/M.2

ASROCK B760M-HDV/M.2
ASROCK B760M-HDV/M.2
from
$12,390.00
Ex Tax: $12,390.00
  • Stock: In Stock
  • Brand: ASRock
  • Model: 4710483943485
  • Weight: 5.00
  • SKU: 202870
  • EAN: 4710483943485
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

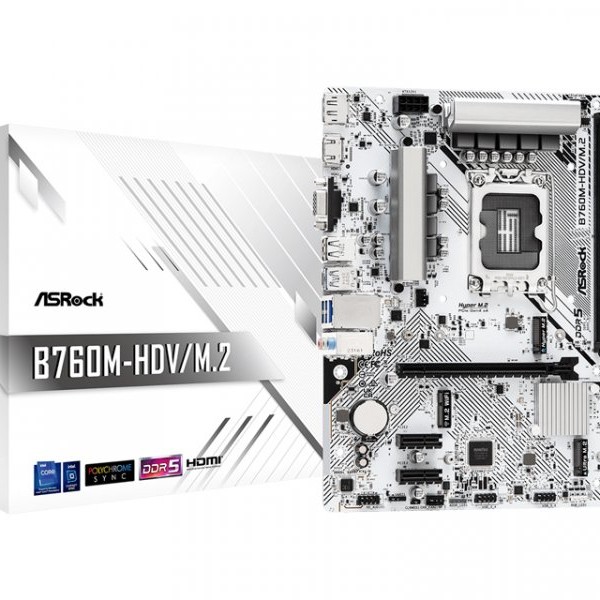

ASROCK B760M-HDV/M.2


Tip procesora Procesorsko ležište (socket): Intel 1700
Čipset: Intel B760
Format ploče  µATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 2x DDR5
Podržane memorije: Podržava DDR5 memorije do 7.200MT/s+ (O.C.)
Maksimalna ukupna memorija: 96GB
Ostale osobine: Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Dual Channel, Podrška za Unbuffered ECC memoriju
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 4.0 (x16 mode)
PCI Express x1 slot: 2x PCI Express 3.0
1x M.2 Slot (Wi-Fi + Bluetooth)
Zvučna kartica Broj kanala: 8 (7.1)
Model: Realtek ALC897 Codec
Ostalo SATA priključci (ukupno): 4
SATA priključci: 4x SATA 6GB/s
Ostali skladišni interfejs: 1 x Hyper M.2 Socket (M2_1), 1 x Ultra M.2 Socket (M2_2)
RAID: RAID 0, RAID 1, RAID 5, RAID 10
Žična mreža (LAN): 10/100/1000/2500 Mbps (2.5GbE)
Model: Dragon RTL8125BG
Wi-Fi: Da (opciono)
Priključci na zadnjem panelu
DisplayPort priključci: 1x DisplayPort 1.4
HDMI priključci: 1x HDMI 2.1
VGA D-sub: 1
Ukupno USB priključaka: 6
Ukupno USB-C priključaka: 1
USB 3.2 priključci: 3 (Tip A) Gen1, 1 (Tip C) Gen1
USB 2.0 priključci: 2 (Tip A)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Unutrašnji priključci
Naponski priključci: 1x 8 pin 12V Power Connector, 1 x 24 pin ATX Power Connector
USB 3.2: 1 (podrška za 2 USB 3.2 Gen 1 porta)
USB 2.0: 2 (podrška za 4 USB 2.0 porta)
Audio: 1x Front panel audio
Ostali priključci: 1 x Chassis Intrusion and Speaker Header, 1 x CPU/Water Pump Fan Connector (4-pin), 1 x SPI TPM header, 1 x 4-pin CPU Fan conector, 3 x Addressable LED Headers, 1 x RGB LED header, 2x Chassis/Water Pump Fan Connectors
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Dimenzije: 244mm x 201mm
Zakonska saobraznost 36 meseci
