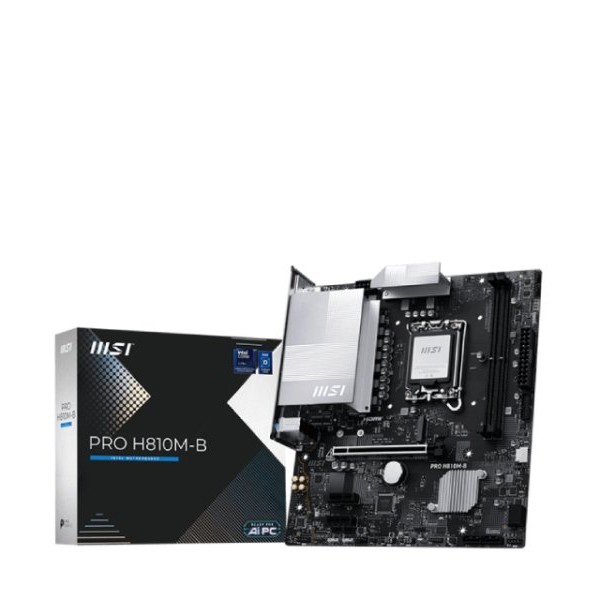

MSI PRO H810M-B

MSI PRO H810M-B
MSI PRO H810M-B
from
$9,010.00
Ex Tax: $9,010.00
  • Stock: In Stock
  • Brand: MSI
  • Model: 4711377337977
  • Weight: 5.00
  • SKU: 308780
  • EAN: 4711377337977
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

MSI PRO H810M-B


Tip procesora Procesorsko ležište (socket)       Intel 1851
Čipset   Intel H810
Format ploče Format microATX
Dimenzije            243.84mm x 220m
Memorija Tip memorije     DDR5
Memorijski slotovi           2
Podržane memorije        6.400MT/s
Maksimalna ukupna memorija   128GB
Ostale osobine  Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za CUDIMM, Podrška za AMD POR Speed and JEDEC Speed
Slotovi za proširenje PCI Express x16 slot        1x PCI Express 4.0
PCI Express x1 slot           1x PCI Express 4.0
Skladišni interfejs
SATA priključci (ukupno)               4
SATA priključci   SATA III 6Gbps
Broj M.2 slotova               2
Podržani M.2 formati     1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x2 mod)
Zvučna kartica Broj kanala          8 (7.1)
Model   Realtek ALC897 Codec
Napomena         Audio boost, De-pop zaštita
Ostalo Grafika Upotreba grafike iz procesora
Mreža
Žična mreža (LAN)           1x Realtek 2.5Gb Ethernet
Model   Realtek 8125
Priključci na zadnjem panelu
Broj DisplayPort priključaka         1
DisplayPort priključci      1x DisplayPort
Broj HDMI priključaka    1
HDMI priključci  1x HDMI
PS/2       5x tastatura
Ukupno USB priključaka                6
USB-A priključci 2x USB 5Gbps (3.2 Gen 1), 4x USB 2.0
RJ-45 (LAN)         1
Audio    3x 3.5mm
Unutrašnji priključci
Naponski priključci          1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR)
USB-A   2 x podrška za 2 USB 5Gbps porta, 4 x podrška za 2 USB 2.0 porta
USB-C   1 x podrška za 1 USB 10Gbps port
Audio    1x Front panel audio
Ostali priključci  1x CPU Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Tuning Controller connector (JDASH), 1x RGB LED connector (JRGB), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x TPM pin header(Support TPM 2.0), 2x System Fan
Ostale karakteristike
Podržane tehnologije    Core Boost, Memory Boost, EZ PCIe Clip II, Lightning Gen 5, Frozr AI Cooling, EZ Debug LED, EZ Memory Detection LED
Pakovanje           SATA kabl, EZ M.2 clip II Remover, 1x EZ M.2 clip II
Zakonska saobraznost 36 meseci
