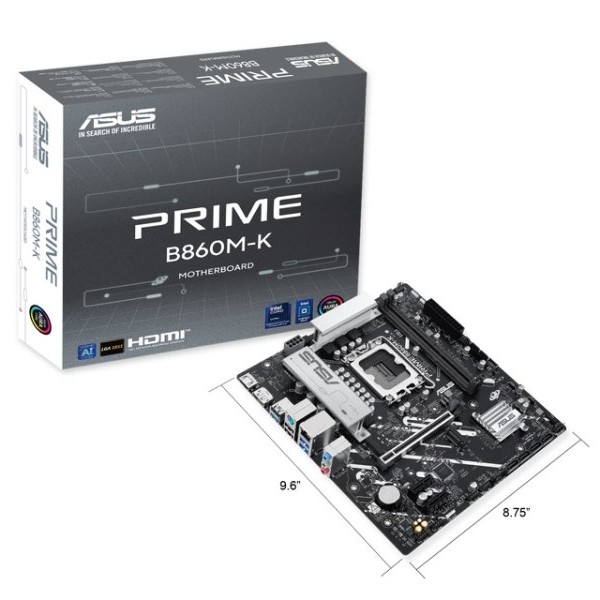

ASUS PRIME B860M-K matična ploča

ASUS PRIME B860M-K matična ploča
ASUS PRIME B860M-K matična ploča
from
$18,270.00
Ex Tax: $18,270.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711387808498
  • Weight: 5.00
  • SKU: 260531
  • EAN: 4711387808498
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME B860M-K matična ploča


Tip procesora Procesorsko ležište (socket): Intel 1851
Čipset: Intel B860
Format ploče µATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 8.800+MT/s (O.C.)
Maksimalna ukupna memorija: 128GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, ASUS Enhanced Memory Profile III (AEMP III), Podrška za CUDIMM
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 4.0 (x4 mode)
PCI Express x1 slot: 2x PCI Express 4.0
Zvučna kartica Broj kanala: 7.1
Model: Realtek
Napomena: High Definition, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 2
Podržani M.2 formati: 1x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod)
RAID: RAID 0, RAID 1, RAID 5, RAID 10
Mreža
Žična mreža (LAN): 2.5GBase-T (Gigabit)
Model: Realtek
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort 1.4
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
PS/2: 1 (tastatura ili miš)
Ukupno USB priključaka: 6
USB-A priključci  1x USB 10Gbps (3.2 Gen 2), 2x USB 5Gbps (3.2 Gen 1), 3x USB 2.0
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Unutrašnji priključci
Naponski priključci: 1 x 24 pin Main Power connector, 1 x 8-pin +12V CPU Power connectors
USB-A: 1 x podrška za 2 USB 5Gbps porta, 2 x podrška za 4 USB 2.0 porta
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel header
Ostali priključci: 1 x S/PDIF Out header, 1 x SPI TPM header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 1 x COM Port header, 1 x AURA RGB header, 2 x 4-pin Chassis Fan headers, 2 x Addressable Gen 2 headers
Ostale karakteristike
Podržane tehnologije: AURA Sync, DIGI+VRM, LANGuard, Overvoltage Protection, SafeSlot, Q-DIMM, Q-Slot, Q-LED Core, ProCool, ESD Guards, VRM heatsink design, M.2 heatsink, Stainless-Steel Back I/O, Aura Sync RGB
Fizičke karakteristike
Dimenzije: 244 x 222 mm
Zakonska saobraznost 36 meseci
