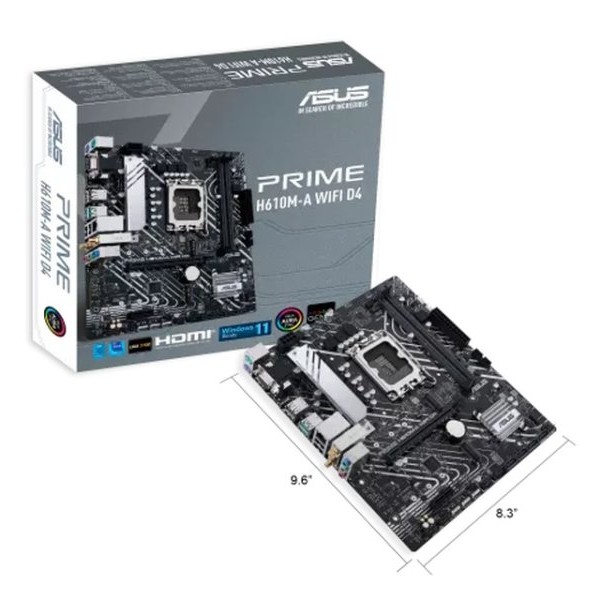

ASUS PRIME H610M-A WIFI D4 matična ploča

ASUS PRIME H610M-A WIFI D4 matična ploča
ASUS PRIME H610M-A WIFI D4 matična ploča
from
$9,310.00
Ex Tax: $9,310.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711081758211
  • Weight: 5.00
  • SKU: 260525
  • EAN: 4711081758211
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME H610M-A WIFI D4 matična ploča


Tip procesora Procesorsko ležište (socket): Intel 1700
Čipset: Intel H610
Format ploče µATX
Memorija Tip memorije: DDR4
Memorijski slotovi: 2
Podržane memorije: 3.200MT/s, 3.000MT/s, 2.933MT/s, 2.666MT/s, 2.400MT/s, 2.133MT/s, 2.800MT/s
Maksimalna ukupna memorija: 64GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 4.0 (x16 mode)
PCI Express x1 slot: 1x PCI Express 3.0
Zvučna kartica Broj kanala: 8 (7.1)
Model: Realtek
Napomena: High Definition, PCB izolacija, Audio Shielding, Premium audio capacitors
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 2
Podržani M.2 formati: 1x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x2 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 3.0 x4 mod)
Mreža
Žična mreža (LAN): 1000Base-T (Gigabit)
Model: Intel
Wi-Fi standard: Wi-Fi 5 (802.11ac)
Bluetooth verzija: 5.0
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort 1.4
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
VGA D-sub: 1
PS/2: 2 (tastatura + miš)
Ukupno USB priključaka: 6
USB-A priključci: 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: 1 x V-M.2 slot (Key E)
Unutrašnji priključci
Naponski priključci: 1x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector
USB-A: 1 x podrška za 2 USB 5Gbps porta, 2 x podrška za 3 USB 2.0 porta
Audio: Front panel audio
Ostali priključci: 1 x S/PDIF Out header, 1 x speaker header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x 14-1 pin SPI TPM header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 2 x 4-pin Chassis Fan headers, 2 x Aura RGB Strip Headers
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije: AURA Sync, DIGI+VRM, LANGuard, Overvoltage Protection, Q-DIMM, Q-Slot, VRM heatsink design, Addressable Gen 2 headers, Stainless-Steel Back I/O, Aura Sync RGB, SafeSlot Core
Fizičke karakteristike
Dimenzije: 244 x 211 mm
Pakovanje: Full box retail
Zakonska saobraznost 36 meseci
