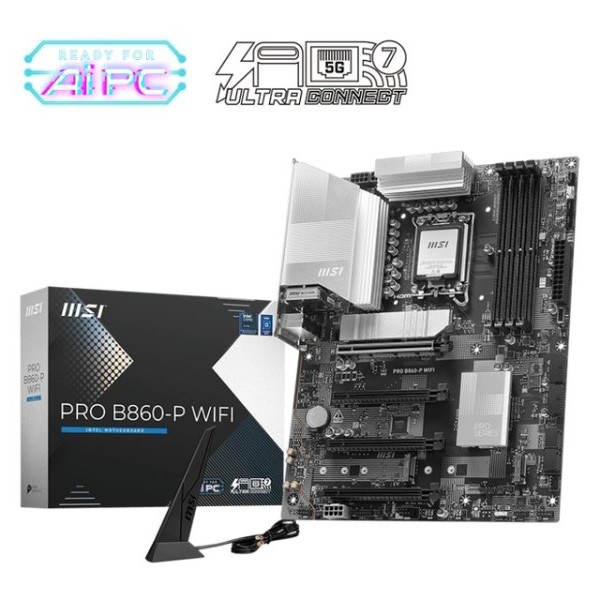

MSI PRO B860-P WIFI matična ploča

MSI PRO B860-P WIFI matična ploča
MSI PRO B860-P WIFI matična ploča
from
$23,210.00
Ex Tax: $23,210.00
  • Stock: In Stock
  • Brand: MSI
  • Model: 4711377286572
  • Weight: 5.00
  • SKU: 259678
  • EAN: 4711377286572
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

MSI PRO B860-P WIFI matična ploča


Tip procesora Procesorsko ležište (socket): Intel 1851
Čipset: Intel B860
Format ploče ATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 6.400MT/s, 8.800MT/s (O.C.)
Maksimalna ukupna memorija: 256GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Podrška za non-ECC UDIMM memory, Dual Channel, Podrška za Extreme Memory Profile 3 (XMP 3), Podrška za Intel POR Speed, Podrška za CUDIMM
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode), 2x PCI Express 4.0 (x1 mode)
PCI slot: 4
Zvučna kartica Broj kanala: 8 (7.1)
Model: Realtek ALC897 Codec
Napomena: High Definition
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 1x 2260 / 2280 (podrška za PCIe 5.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x4 mod), 1x 2260 / 2280 (podrška za PCIe 4.0 x2 mod)
RAID: RAID 0, RAID 1, RAID 5, RAID 10
Mreža
Žična mreža (LAN): 5GBase-T (Gigabit)
Model: Intel Killer E5000, Realtek RTL8126
Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth verzija: 5.4
Priključci na zadnjem panelu
Thunderbolt: 1x Thunderbolt 4
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort 1.4 preko USB Type-C
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
Ukupno USB priključaka: 8
USB-A priključci: 2x USB 10Gbps (3.2 Gen 2), 2x USB 5Gbps (3.2 Gen 1), 4x USB 2.0
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: 2x Wi-Fi antenna connectors, 1x Clear CMOS dugme
Unutrašnji priključci
Naponski priključci: 2x Power Connector (CPU_PWR), 1x Power Connector (ATX_PWR), 1x Power Connector(PCIE_PWR 8pin)
USB-A: 4 x podrška za 1 USB 5Gbps port, 4 x podrška za 1 USB 2.0 port
USB-C: 1 x podrška za 1 USB 10Gbps port
Audio: 1x Front panel audio
Ostali priključci: 4 x EZ Debug LED, 1x CPU Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Tuning Controller connector (JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header(Support TPM 2.0), 1x Combo Fan (Pump_Sys Fan), 4x System Fan, 1 x COM port(s) connector(s), 1x Thunderbolt5 card connector
Fizičke karakteristike
Dimenzije: 304.8 x 243.84 mm
Zakonska saobraznost 24 meseca
