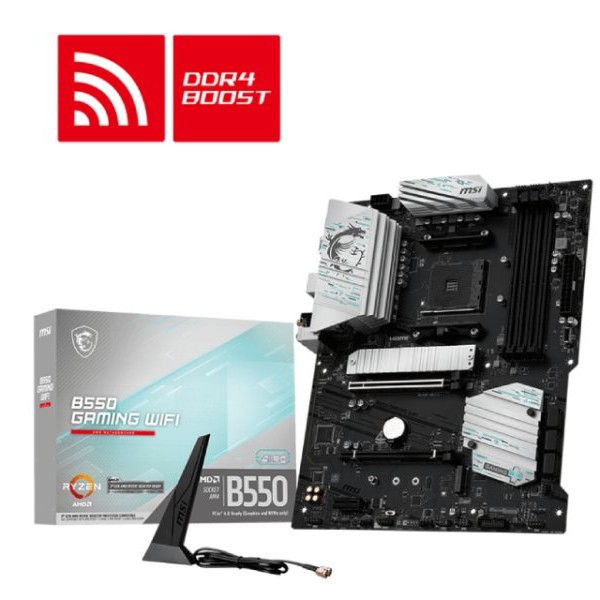

MSI B550 GAMING WIFI matična ploča

MSI B550 GAMING WIFI matična ploča
MSI B550 GAMING WIFI matična ploča
from
$17,680.00
Ex Tax: $17,680.00
  • Stock: In Stock
  • Brand: MSI
  • Model: 4711377376143
  • Weight: 5.00
  • SKU: 334674
  • EAN: 4711377376143
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

MSI B550 GAMING WIFI matična ploča


Tip procesora Procesorsko ležište (socket): AMD AM4
Čipset: AMD B550
Format ploče ATX
Memorija Tip memorije: DDR4
Memorijski slotovi: 4
Podržane memorije: Podržava DDR4 memorije do 4.866MHz+ (O.C.)
Maksimalna ukupna memorija: 128GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory
Slotovi za proširenje PCI Express x16 slot: 2x PCI Express 3.0 (x4 chipset) / 4.0 (x16 CPU)
PCI Express x1 slot: 1x PCI Express 3.0
Multi-card podrška: AMD Multi-GPU
Zvučna kartica Broj kanala: 8 (7.1)
Model: Realtek ALC897 Codec
Napomena: High Definition, Audio boost, De-pop zaštita
Ostalo Skladišni interfejs
SATA priključci (ukupno): 6
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 2
Podržani M.2 formati: 1x 2280 (podrška za PCIe 3.0 x4 mod), 1x 22110 / 2242 / 2260 / 2280 (podrška za PCIe 4.0 x4 mod)
Mreža
Žična mreža (LAN): 1000Base-T (Gigabit)
Model: Realtek 8111H
Wi-Fi standard: Wi-Fi 5 (802.11ac)
Bluetooth verzija: 5.0
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort 1.2
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
Ukupno USB priključaka: 8
Ukupno USB-C priključaka: 1
USB-A priključci: 4x USB 2.0, 2x USB 5Gbps (3.2 Gen 1), 1x USB 10Gbps (3.2 Gen 2)
USB-C priključci: 1x USB 10Gbps (3.2 Gen 2)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: BIOS Flashback taster, Wi-Fi / Bluetooth
Unutrašnji priključci
Naponski priključci: 1x Power Connector (CPU_PWR), 1x Power Connector(ATX_PWR)
USB-A: 4 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel audio
Ostali priključci: 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x TPM pin header(Support TPM 2.0), 1x CPU Fan, 4 x EZ Debug LED, 1x Com Port (JCOM), 6x System Fan, 1x Pump Fan, 2x Addressable RGB LED connector(JRAINBOW), 1x RGB LED connector(JRGB)
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije: Game Boost, MSI Mystic Light, Frozr Guard
Fizičke karakteristike
Dimenzije: 304.8 x 243.84 mm
Pakovanje: SATA kabl, Kratko korisničko upustvo, I/O Shield, Wi-Fi antena, M.2 šrafovi
Zakonska saobraznost 36 meseci
