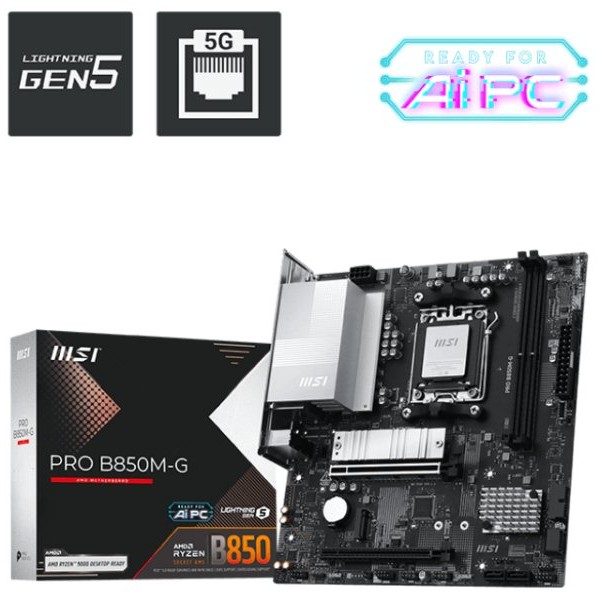

MSI PRO B850M-G matična ploča

MSI PRO B850M-G matična ploča
MSI PRO B850M-G matična ploča
from
$15,250.00
Ex Tax: $15,250.00
  • Stock: In Stock
  • Brand: MSI
  • Model: 4711377374835
  • Weight: 5.00
  • SKU: 334672
  • EAN: 4711377374835
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

MSI PRO B850M-G matična ploča


Tip procesora Procesorsko ležište (socket): AMD AM5
Čipset: AMD B850
Format ploče microATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 2
Podržane memorije: Podržava DDR5 memorije do 8.200MT/s+ (O.C.)
Maksimalna ukupna memorija: 128GB
Ostale osobine: Podrška za non-ECC UDIMM memory, Dual Channel, Podrška za CUDIMM, Podrška za AMD POR Speed and JEDEC Speed, Podrška za Memory Overclocking and AMD EXPO
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x8/x4 mode)
PCI slot: 2
Zvučna kartica Broj kanala: 8 (7.1)
Model: Realtek ALC897 Codec
Napomena: High Definition
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: 4x SATA 6GB/s
Broj M.2 slotova: 2
Podržani M.2 formati: 1x 2260 / 2280 (podrška za PCIe 4.0 x4 mod), 1x 2260 / 2280 (podrška za PCIe 5.0 x4 mod)
RAID: RAID 0, RAID 1, RAID 10
Mreža
Žična mreža (LAN): 5GBase-T (Gigabit)
Model: Realtek 8126VB
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort 1.4
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
Ukupno USB priključaka: 6
Ukupno USB-C priključaka: 1
USB-A priključci: 2x USB 2.0, 3x USB 5Gbps (3.2 Gen 1)
USB-C priključci: 1x USB 5Gbps (3.2 Gen 1)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Unutrašnji priključci
Naponski priključci: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR)
USB-A: 4 x podrška za 1 USB 2.0 port, 2 x podrška za 1 USB 5Gbps port
USB-C: 1 x podrška za 1 USB 10Gbps port
Audio: 1x Front panel audio
Ostali priključci: 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x TPM pin header(Support TPM 2.0), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x Addressable V2 RGB LED connector (JARGB_V2), 2x System Fan, 1x Com Port (JCOM), 1x EZ Memory Detection LED, 1x RGB LED connector(JRGB), 4x EZ Debug LED
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije: Core Boost, Extended Heatsink Design, EZ PCIe Clip II, Pre-mounted I/O shield, Memory Boost, Frozr AI Cooling, Lightning Gen 5
Fizičke karakteristike
Dimenzije: 243.84 x 226 mm
Pakovanje: SATA kabl, EZ M.2 clip II Remover, 1 x Quick Start Guide, 2x EZ M.2 clip II
Zakonska saobraznost 36 meseci
