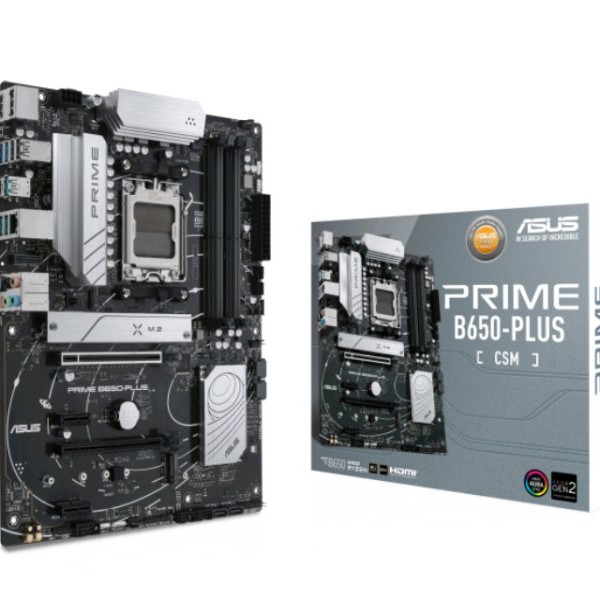

ASUS PRIME B650-PLUS-CSM matična ploča

ASUS PRIME B650-PLUS-CSM matična ploča
ASUS PRIME B650-PLUS-CSM matična ploča
from
$20,850.00
Ex Tax: $20,850.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711081923411
  • Weight: 5.00
  • SKU: 334710
  • EAN: 4711081923411
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME B650-PLUS-CSM matična ploča


Tip procesora Procesorsko ležište (socket): AMD AM5
Čipset: AMD B650
Format ploče ATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: Podržava DDR5 memorije do 7.600MT/s+ (O.C.)
Maksimalna ukupna memorija: 192GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za ECC UDIMM memory, OptiMem II, Podrška za AMD EXTended Profiles for Overclocking (EXPO)
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 4.0 (x16 mode), 1x PCI Express 4.0 (x4 mode), 1x PCI Express 4.0 (x8/x4 mode)
PCI Express x1 slot: 2x PCI Express 4.0
Zvučna kartica Broj kanala: 8 (7.1)
Model: Realtek
Napomena: Audio Shielding, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Premium audio capacitors, Dedicated audio PCB layers, Supports up to 24-Bit/192 kHz playback
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 2
Podržani M.2 formati: 1x 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 / 5.0 x4 mod)
RAID: RAID 0, RAID 1, RAID 10
Mreža
Žična mreža (LAN): 2.5GBase-T (Gigabit)
Model: Realtek
Wi-Fi: Da (opciono)
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI
Ukupno USB priključaka: 8
Ukupno USB-C priključaka: 1
USB-A priključci: 2x USB 2.0, 2x USB 5Gbps (3.2 Gen 1), 3x USB 10Gbps (3.2 Gen 2)
USB-C priključci: 1x USB 10Gbps (3.2 Gen 2)
RJ-45 (LAN): 1
Audio: 5x 3.5mm, 1x S/PDIF optički
Ostali priključci: BIOS Flashback taster, 1 x V-M.2 slot (Key E)
Unutrašnji priključci
Naponski priključci: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector
USB-A: 2 x podrška za 4 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel header
Ostali priključci: 4 x SATA 6Gb/s, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 1 x AURA RGB header, 1 x Thunderbolt™ (USB4®) header, 3 x 4-pin Chassis Fan headers, 1 x 20-3 pin System Panel header with Chassis intrude function, 2 x M.2 slot (Key M), 1 x SPI TPM header (14-1pin)
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije: AURA Sync, DIGI+VRM, ASUS CPU-Z, LANGuard, Overvoltage Protection, SafeSlot Core+, VRM heatsink design, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, ProCool, Stainless-Steel Back I/O, BIOS FlashBack button, BIOS FlashBack LED, Armoury Crate, Q-Design, Flexible M.2 heatsink, ASUS Control Center Express(ACCE), AI Suite 3
Fizičke karakteristike
Dimenzije: 305 x 244 mm
Pakovanje: Šrafovi, 2 x SATA 6Gb/s kabl, Kratko korisničko upustvo, I/O Shield, 1 x M.2 gumice, 1 x ACC Express Activation Key Card
Zakonska saobraznost 36 meseci
