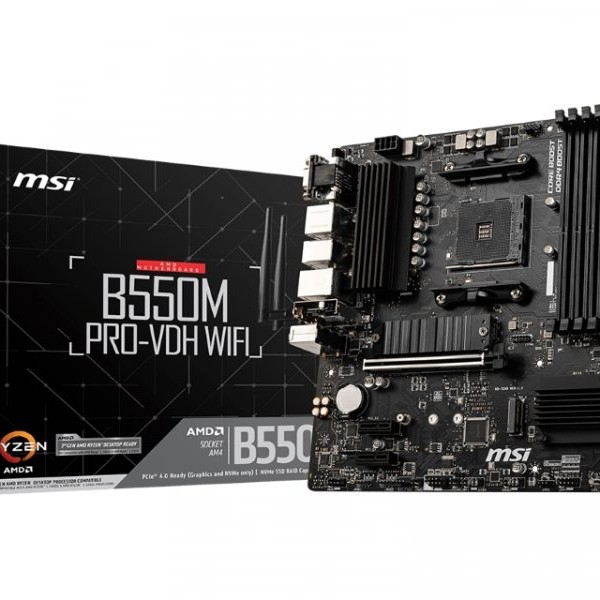

MSI B550M PRO-VDH WIFI

MSI B550M PRO-VDH WIFI
MSI B550M PRO-VDH WIFI
from
$14,880.00
Ex Tax: $14,880.00
  • Stock: In Stock
  • Brand: MSI
  • Model: 4719072733698
  • Weight: 5.00
  • SKU: 67918
  • EAN: 4719072733698
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

MSI B550M PRO-VDH WIFI


Reklamacioni period
Fizičke karakteristike
Unutrašnji priključci
Priključci na zadnjem panelu
Audio
Mreža
Skladišni interfejs
Slotovi
Memorija
Osnovne karakteristike
Reklamacioni period 36 meseci
Format microATX
Dimenzije 244mm x 244mm
Fiksirajući otvori 8
Pakovanje Full box retail
Naponski priključci 1x 8 pin 12V Power Connector, ATX 24pin
USB 3.2 1 (podrška za 2 USB 3.2 Gen 1 porta), 1 (Tip C) Gen1
USB 2.0 2 (podrška za 4 USB 2.0 porta)
Audio 1x Front panel audio
Serijski port 1
Ostali priključci 1 x Clear CMOS jumper, 1x Chassis Intrusion connector, 1x CPU Fan Connector (4-pin), 1x Water Pump connector (4-pin), 2 x M.2 slots, 2 x RGB LED connectors, 2x 3-pin RAINBOW LED connectors, 2x System Panel connector, 3x System Fan Connector (4-pin), 4 x SATA 6Gb/s, TPM modul konektor
Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
DisplayPort priključci 1x DisplayPort
HDMI priključci 1x HDMI
VGA D-sub 1
PS/2 1 (tastatura ili miš)
Ukupno USB priključaka 6
USB 3.2 priključci 4 (Tip A) Gen1
USB 2.0 priključci 2
RJ-45 (LAN) 1
Audio 3x 3.5mm
Ostali priključci 2x Wi-Fi antenna connectors, BIOS Flashback taster
Broj kanala 8 (7.1)
Model Realtek®
Napomena High Definition
Žična mreža (LAN) 1x 10/100/1.000Mbps (Gigabit ethernet)
Model Realtek®
Wi-Fi Da
Bežični mrežni standardi IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bluetooth™ Da
Bluetooth™ verzija 4.2
SATA priključci (ukupno) 4
SATA priključci 4x SATA III
Ostali skladišni interfejs 2x M.2
RAID RAID 0, RAID 1, RAID 10
PCI Express x16 slot 1x PCI Express 4.0/3.0
PCI Express x1 slot 2x PCI Express 3.0
Tip memorije DDR4
Memorijski slotovi 4x DDR4
Podržane memorije 1.866MHz, 2.133MHz, 2.400MHz, 2.667MHz, 2.667MHz (O.C.), 2.800MHz, 2.800MHz (O.C.), 2.933MHz, 2.933MHz (O.C.), 3.000MHz, 3.000MHz (O.C.), 3.066MHz, 3.066MHz (O.C.), 3.200MHz, 3.200MHz (O.C.), 3.466Mhz (O.C.), 3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz (O.C.), 4.133Mhz (O.C.), 4.266Mhz (O.C.), 4.400+ Mhz (O.C.)
Maksimalna ukupna memorija 128GB
Ostale osobine Dvokanalni (Dual-channel) režim rada memorije, Podrška za Unbuffered ECC memoriju
Procesorsko ležište (socket) AMD® AM4
Čipset AMD® B550
