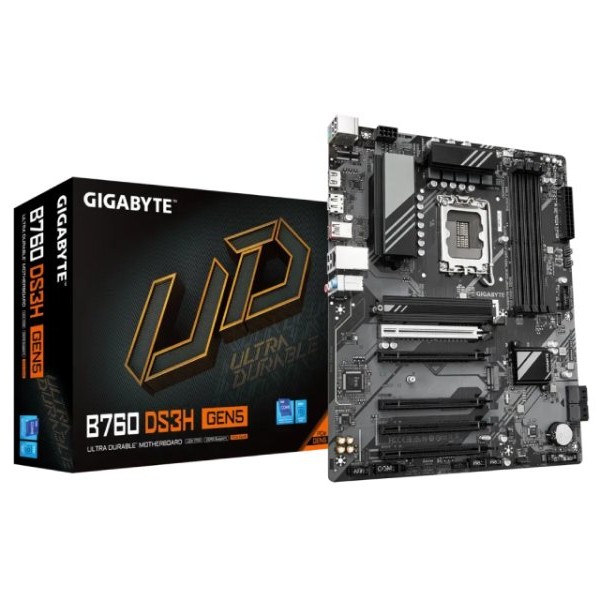

GIGABYTE B760 DS3H GEN5

GIGABYTE B760 DS3H GEN5
GIGABYTE B760 DS3H GEN5
from
$17,620.00
Ex Tax: $17,620.00
  • Stock: In Stock
  • Brand: GIGABYTE
  • Model: 4719331872892
  • Weight: 5.00
  • SKU: 339423
  • EAN: 4719331872892
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

GIGABYTE B760 DS3H GEN5


Tip procesora Procesorsko ležište (socket) Intel 1700
Čipset Intel B760
Format ploče Format              ATX
Dimenzije        305mm x 244mm
Memorija Tip memorije  DDR5
Memorijski slotovi      4
Podržane memorije   6.000MT/s (O.C.), 5.800MT/s (O.C.), 7.200MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 4.800MT/s, 7.600MT/s (O.C.), 7.400MT/s (O.C.), 5.600MT/s (O.C.), 5.400MT/s (O.C.), 5.200MT/s (O.C.), 4.000MT/s
Maksimalna ukupna memorija         256GB
Ostale osobine            Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za ECC UDIMM memory
Slotovi za proširenje PCI Express x16 slot  1x PCI Express 5.0 (x16 mode), 4x PCI Express 3.0 (x1 mode)
PCI slot             5
Skladišni interfejs
SATA priključci (ukupno)        4
SATA priključci             SATA III 6Gbps
Broj M.2 slotova          1
Podržani M.2 formati 1x 2280 (podrška za PCIe 4.0 x4/x2 mod)
RAID    RAID 0, RAID 1, RAID 5, RAID 10
Zvučna kartica Broj kanala      2/4/5.1/7.1
Model  Realtek
Napomena      High Definition, Podrška za S/PDIF izlaz
Ostalo Mreža
Žična mreža (LAN)      1000Base-T (Gigabit)
Model  Realtek
Priključci na zadnjem panelu
Broj DisplayPort priključaka 1
DisplayPort priključci              1x DisplayPort
Broj HDMI priključaka             1
HDMI priključci           1x HDMI
PS/2     1 (tastatura ili miš)
Ukupno USB priključaka        6
Ukupno USB-C priključaka   1
USB-A priključci          1x USB 10Gbps (3.2 Gen 2), 4x USB 2.0
USB-C priključci         1x USB 20Gbps (3.2 Gen 2x2)
RJ-45 (LAN)     1
Audio   3x 3.5mm
Unutrašnji priključci
Naponski priključci   1 x 24 pin Main Power connector, 1 x 8-pin ATX 12V power connector
USB-A 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
USB-C 1 x podrška za 1 USB 5Gbps port
Audio   1x S/PDIF izlaz, 1x Front panel audio
Serijski port    1
Ostali priključci           3x System Fan header, 1 x front panel header, 1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 1 x Q-Flash Plus button, 1 x RGB LED strip header, 1 x reset jumper, 1 x CPU fan header, 1 x reset button, 1x CPU fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 1x system fan/water cooling pump header, 1 x serial port header, 2 x RGB LED strip headers
Napomena      Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije              GIGABYTE Control Center, Q-Flash Plus, Smart Backup, AI PerfDrive
Zakonska saobraznost 36 meseci
