GIGABYTE Z790 D AX

GIGABYTE Z790 D AX
GIGABYTE Z790 D AX
from
$25,360.00
Ex Tax: $25,360.00
  • Stock: In Stock
  • Brand: GIGABYTE
  • Model: 4719331860592
  • Weight: 5.00
  • SKU: 218123
  • EAN: 4719331860592
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

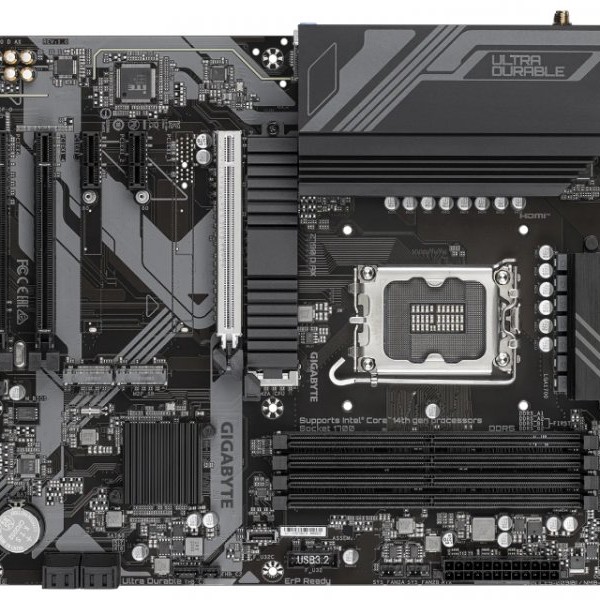

GIGABYTE Z790 D AX


Tip procesora Procesorsko ležište (socket): LGA1700
Čipset: Intel Z790
Format ploče ATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4x DDR5
Podržane memorije: 6.000MT/s (O.C.), 5.800MT/s (O.C.), 7.200MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 5.200MT/s, 4.800MT/s, 7.600MT/s (O.C.), 4.400MT/s, 7.400MT/s (O.C.), 5.400MT/s, 5.600MT/s
Maksimalna ukupna memorija: 192GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Dual Channel
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode), 1x PCI Express 3.0 (x1 mode)
PCI Express x1 slot: 2x PCI Express 3.0
PCI slot: 5
Zvučna kartica Broj kanala: 2/4/5.1/7.1
Model: Realtek
Napomena: High Definition
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: 4x SATA 6GB/s
Ostali skladišni interfejs: 3x M.2
RAID: RAID 0, RAID 1, RAID 5, RAID 10
Mreža
Žična mreža (LAN): 1x Realtek 2.5Gb Ethernet
Model: Realtek
Wi-Fi: Da
Bluetooth: Da
Bluetooth verzija: 5.3
Priključci na zadnjem panelu
DisplayPort priključci: 1x DisplayPort
HDMI priključci: 1
PS/2: 1 (tastatura ili miš)
Ukupno USB priključaka: 7
Ukupno USB-C priključaka: 1
USB 3.2 priključci: 1 (Tip A) Gen2, 1 (Tip C) Gen2, 4 x Gen1
USB 2.0 priključci: 2
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: 2x SMA antenna connectors (2T2R)
Unutrašnji priključci
Naponski priključci: 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
USB 3.2: 1 (podrška za 1 USB 3.2 Gen 1 Tip C porta), 1x Gen1
USB 2.0: 2
Audio: 1x Front panel audio
Ostali priključci: 1x TPM Header, 3x M.2 Socket 3, 1 x front panel header, 1 x Clear CMOS jumper, 2 x addressable LED strip headers, 1 x Q-Flash Plus button, 4 x SATA 6Gb/s, 1 x S/PDIF Out header, 1 x reset jumper, 1 x CPU fan header, 1 x reset button, 1x CPU fan/water cooling pump header, 1x system fan/water cooling pump header, 3 x system fan headers, 1 x Thunderbolt™ add-in card connector
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije: GIGABYTE Control Center, Q-Flash Plus
Fizičke karakteristike
Dimenzije: 305mm x 244mm
Fiksirajući otvori: 9
Zakonska saobraznost 36 meseci
