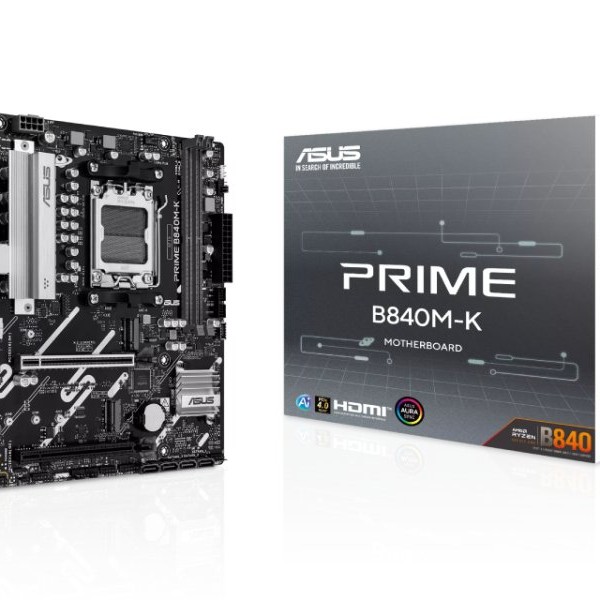

ASUS PRIME B840M-K matična ploča

ASUS PRIME B840M-K matična ploča
ASUS PRIME B840M-K matična ploča
from
$20,160.00
Ex Tax: $20,160.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711636435048
  • Weight: 5.00
  • SKU: 347605
  • EAN: 4711636435048
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME B840M-K matična ploča


Tip procesora Procesorsko ležište (socket): AMD AM5
Čipset: AMD B840
Format ploče microATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 2
Podržane memorije: Podržava DDR5 memorije do 8.000MT/s+ (O.C.)
Maksimalna ukupna memorija: 128GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 4.0 (x16 mode), 1x PCI Express 3.0 (x4 mode)
PCI slot: 2
Zvučna kartica Broj kanala: 8 (7.1)
Napomena: High Definition, Audio Shielding, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Premium audio capacitors, Supports up to 24-Bit/192 kHz playback, PCB izolacija
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 2
Podržani M.2 formati: 1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2280 (podrška za PCIe 4.0 x4/x2 mod)
RAID: RAID 0, RAID 1, RAID 10, RAID 5
Mreža
Žična mreža (LAN): 2.5GBase-T (Gigabit)
Model: Realtek
Priključci na zadnjem panelu
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
Ukupno USB priključaka: 6
USB-A priključci: 2x USB 2.0, 4x USB 5Gbps (3.2 Gen 1)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Unutrašnji priključci
Naponski priključci: 1 x 8-pin +12V CPU Power connectors, 1 x 24-pin Main Power connector
USB-A: 2 x podrška za 4 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel header, 1x S/PDIF izlaz
Ostali priključci: 4 x SATA 6Gb/s ports, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 1 x COM Port header, 3 x 4-pin Chassis Fan headers, 1 x 10-1 pin Front Panel System header, 2 x M.2 slots (Key M), 1 x SPI TPM header (14-1 pin), 3 x Addressable RGB Gen 2 headers
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije: AURA Creator, AURA Sync, ASUS CPU-Z, LANGuard, Fan Xpert 2+, UEFI Bios, Armoury Crate, Q-Design, DriverHub, ASUS Thermal Solution, ASUS EZ DIY, AI Cache Boost, AMD RAIDXpert2 Technology, ASUS 5X PROTECTION III
Fizičke karakteristike
Dimenzije: 244 x 221 mm
Pakovanje: 2 x SATA 6Gb/s kabl, I/O Shield, 1 x Quick Start Guide, 1 x Screw package for M.2 SSD
Zakonska saobraznost 36 meseci
