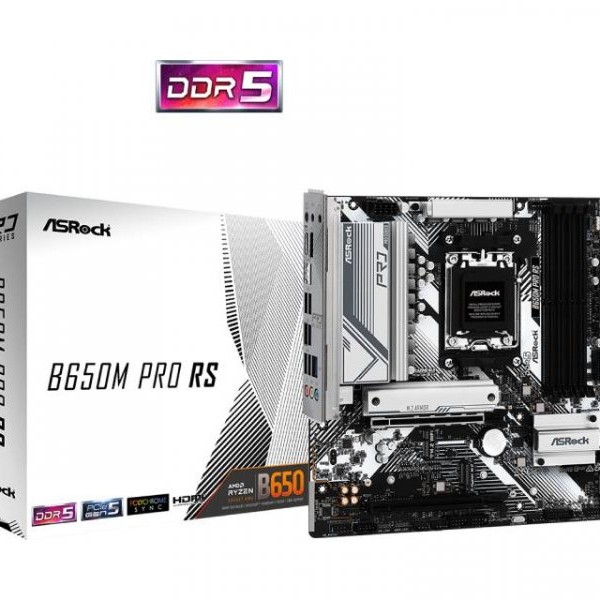

ASROCK B650M PRO RS

ASROCK B650M PRO RS
ASROCK B650M PRO RS
from
$17,380.00
Ex Tax: $17,380.00
  • Stock: In Stock
  • Brand: ASRock
  • Model: 4710483943096
  • Weight: 5.00
  • SKU: 171639
  • EAN: 4710483943096
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASROCK B650M PRO RS


Tip procesora Procesorsko ležište (socket)       AMD AM5
Čipset   AMD B650
Format ploče Format microATX
Dimenzije            244mm x 244mm
Fiksirajući otvori               8
Memorija Tip memorije     DDR5
Memorijski slotovi           4x DDR5
Podržane memorije        Podržava DDR5 memorije do 6.000MHz+ (O.C.)
Maksimalna ukupna memorija   128GB
Ostale osobine  Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO™)
Slotovi za proširenje PCI Express x16 slot        1x PCI Express 4.0, 1x PCI Express 3.0
PCI slot 2
Ostali slotovi      3x M.2 slot, 4x SATA III
Skladišni interfejs
SATA priključci (ukupno)               4
SATA priključci   4x SATA III
Ostali skladišni interfejs 1 x Blazing M.2 Socket (M2_1), 1 x Hyper M.2 Socket (M2_2), 1x M.2 Key-E for WiFi, 1 x M.2 Socket (M2_3)
RAID      RAID 0, RAID 1, RAID 10, RAID 5
Napomena         RAID 0, RAID 1 i RAID 10 podrška za SATA priključke, RAID 0, RAID 1 i RAID 10 podrška za NVMe SSD priključke
Zvučna kartica Broj kanala          8 (7.1)
Napomena         Nahimic Audio
Ostalo Grafika Upotreba grafike iz procesora
Mreža
Žična mreža (LAN)           10/100/1000/2500 Mbps (2.5GbE)
Model   Dragon RTL8125BG
Priključci na zadnjem panelu
DisplayPort priključci      1x DisplayPort 1.4
HDMI priključci  1
Ukupno USB priključaka                8
Ukupno USB C priključaka            1
USB 3.2 priključci              1 (Tip C) Gen2, 2 (Tip A) Gen1, 1 (Tip A) Gen2
USB 2.0 priključci              4 (Tip A)
RJ-45 (LAN)         1
Audio    3x 3.5mm
Ostali priključci  BIOS Flashback taster
Unutrašnji priključci
Naponski priključci          1x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector
USB 3.2 1 (podrška za 1 USB 3.2 Gen 2 Tip C porta), 2 (podrška za 4 USB 3.2 Gen 1 Tip C porta)
USB 2.0 2 (podrška za 4 USB 2.0 porta)
Audio    1x Front panel header
Ostali priključci  1 x SPI TPM header, 1 x Power LED and Speaker Header, 3 x Chassis/Water Pump Fan Connectors (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 1 x RGB LED strip header, 1 x 4-pin CPU Fan conector, 1 x Thunderbolt™ AIC Connector (5-pin), 3 x Addressable LED Headers
Napomena         Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije    ASRock Polychrome SYNC, ASRock EZ Mode
Fizičke karakteristike
Pakovanje           Šrafovi, 2x SATA kabl
Zakonska saobraznost 36 meseci
