MSI B550M PRO-VDH

MSI B550M PRO-VDH
MSI B550M PRO-VDH
from
$9,790.00
Ex Tax: $9,790.00
  • Stock: In Stock
  • Brand: MSI
  • Model: 4719072758417
  • Weight: 5.00
  • SKU: 81979
  • EAN: 4719072758417
  • MPN: bc
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

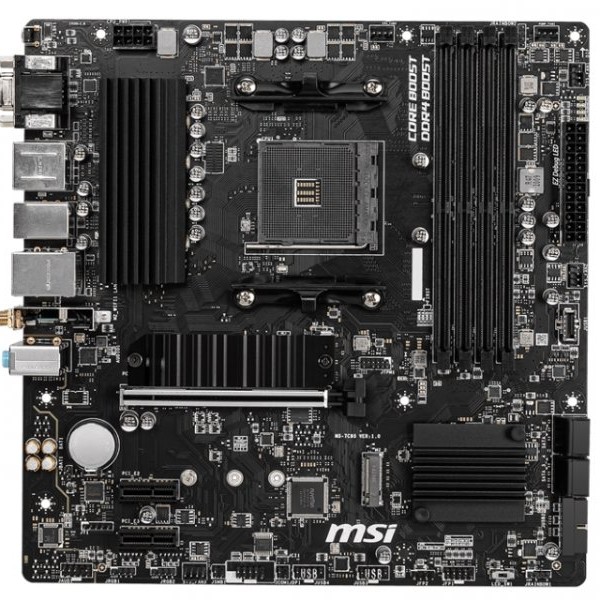

MSI B550M PRO-VDH


Procesorsko ležište (socket) AMD® AM4
Čipset AMD® B550
Memorija
Tip memorije DDR4
Memorijski slotovi 4x DDR4
Podržane memorije
1.866MHz, 2.133MHz, 2.400MHz, 2.667MHz, 2.667MHz (O.C.), 2.800MHz,
2.800MHz (O.C.), 2.933MHz, 2.933MHz (O.C.), 3.000MHz, 3.000MHz (O.C.),
3.066MHz, 3.066MHz (O.C.), 3.200MHz, 3.200MHz (O.C.), 3.466Mhz (O.C.),
3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz (O.C.),
4.133Mhz (O.C.), 4.266Mhz (O.C.), 4.400Mhz+ (O.C.)

Maksimalna ukupna memorija 128GB
Ostale osobine Dvokanalni (Dual-channel) režim rada memorije
Slotovi
PCI Express x16 slot 1x PCI Express 4.0/3.0
PCI Express x1 slot 2x PCI Express 3.0
Skladišni interfejs
SATA priključci (ukupno) 4
SATA priključci 4x SATA III
Ostali skladišni interfejs 2x M.2
RAID RAID 0, RAID 1, RAID 10
Mreža
Žična mreža (LAN) 1x 10/100/1.000Mbps (Gigabit ethernet)
Model Realtek®
Audio
Broj kanala 8 (7.1)
Model Realtek®
Napomena High Definition
Priključci na zadnjem panelu
DisplayPort priključci 1x DisplayPort
HDMI priključci 1x HDMI
VGA D-sub 1
PS/2 1 (tastatura ili miš)
Ukupno USB priključaka 6
USB 3.2 priključci 4 (Tip A) Gen1
USB 2.0 priključci 2
RJ-45 (LAN) 1
Audio 3x 3.5mm
Ostali priključci 2x Wi-Fi antenna connectors, BIOS Flashback taster
Unutrašnji priključci
Naponski priključci 1x 8 pin 12V Power Connector, ATX 24pin
USB 3.2 1 (podrška za 2 USB 3.2 Gen 1 porta), 1 (Tip C) Gen1
USB 2.0 2 (podrška za 4 USB 2.0 porta)
Audio 1x Front panel audio
Serijski port 1
Ostali priključci
1 x Clear CMOS jumper,
1x Chassis Intrusion connector
1x CPU Fan Connector (4-pin),
1x Water Pump connector (4-pin),
2 x RGB LED connectors,
2x 3-pin RAINBOW LED connectors,
2x System Panel connector,
3x System Fan Connector (4-pin),
TPM modul konektor

Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Fizičke karakteristike
Format microATX
Dimenzije 244mm x 244mm
Fiksirajući otvori 8
Pakovanje Full box retail
Reklamacioni period
Reklamacioni period 36 meseci
