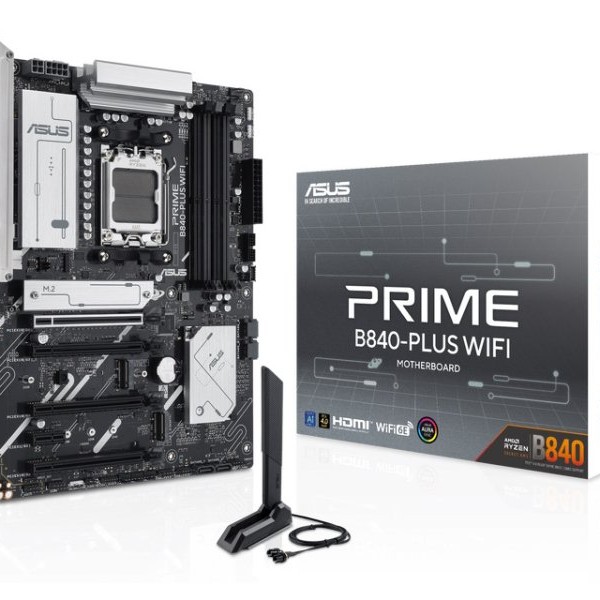

ASUS PRIME B840-PLUS WIFI matična ploča

ASUS PRIME B840-PLUS WIFI matična ploča
ASUS PRIME B840-PLUS WIFI matična ploča
from
$23,930.00
Ex Tax: $23,930.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711387797273
  • Weight: 5.00
  • SKU: 260544
  • EAN: 4711387797273
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME B840-PLUS WIFI matična ploča


Tip procesora Procesorsko ležište (socket): AMD AM5
Čipset: AMD B840
Format ploče ATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 7.600+MT/s (O.C.)
Maksimalna ukupna memorija: 192GB
Ostale osobine: Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)
Slotovi za proširenje PCI Express x16 slot:
1x PCI Express 3.0
1x PCI Express 4.0 (x16 mode)
1x PCI Express 4.0 (x8/x4 mode)
1x PCI Express 3.0 (x4 mode)
2x PCI Express 3.0 (x1 mode)
Zvučna kartica Broj kanala: 7.1
Napomena: High Definition, Audio Shielding, Premium audio capacitors,
Dedicated audio PCB layers
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 2x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x4/x2 mod)
RAID: RAID 0, RAID 1, RAID 10, RAID 5
Mreža
Žična mreža (LAN): 2.5GBase-T (Gigabit)
Model: Realtek
Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth verzija: 5.3
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 1
DisplayPort priključci: 1x DisplayPort 1.4
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
Ukupno USB priključaka: 8
Ukupno USB-C priključaka: 1
USB-A priključci: 4x USB 2.0, 2x USB 5Gbps (3.2 Gen 1), 1x USB 10Gbps (3.2 Gen 2)
USB-C priključci: 1x USB 10Gbps (3.2 Gen 2)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Unutrašnji priključci
Naponski priključci: 1 x 8-pin +12V CPU Power connectors, 1 x 4-pin +12V CPU Power connectors, 1 x 24-Pin Power Connector
USB-A: 2 x podrška za 4 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel header
Ostali priključci: 1 x S/PDIF Out header, 1 x SPI TPM header, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 1 x COM Port header, 4 x 4-pin Chassis Fan headers, 3x Addressable Gen 2 headers, 1x Chassis Intrusion Header, 1 x Thunderbolt™ (USB4®) header
Ostale karakteristike
Podržane tehnologije: AURA Creator, AURA Sync, DIGI+VRM, ASUS CPU-Z, LANGuard, Overvoltage Protection, Q-DIMM, Q-Slot, Fan Xpert 2+, Q-LED Core, SafeSlot Core+, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, Stainless-Steel Back I/O, Q-Antenna, MyHotkey
Fizičke karakteristike
Dimenzije: 305 x 244 mm
Zakonska saobraznost 36 meseci
