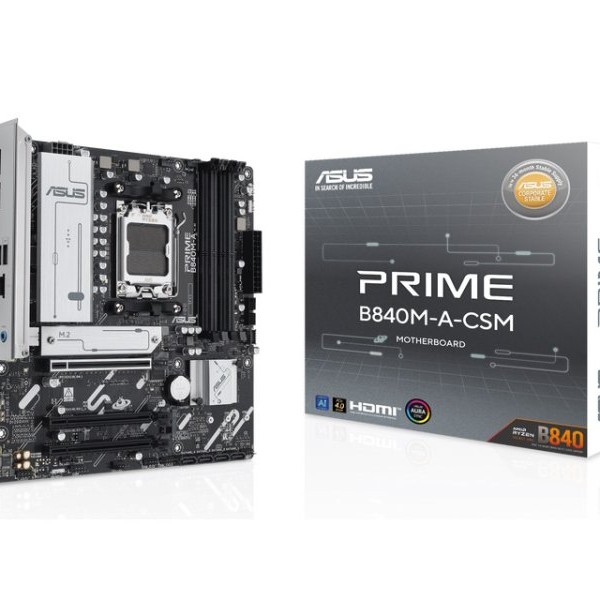

ASUS PRIME B840M-A-CSM matična ploča

ASUS PRIME B840M-A-CSM matična ploča
ASUS PRIME B840M-A-CSM matična ploča
from
$22,080.00
Ex Tax: $22,080.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711387797204
  • Weight: 5.00
  • SKU: 260532
  • EAN: 4711387797204
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME B840M-A-CSM matična ploča


Tip procesora Procesorsko ležište (socket): AMD AM5
Čipset: AMD B840
Format ploče µATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4
Podržane memorije: 7.600+MT/s (O.C.)
Maksimalna ukupna memorija: 192GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), Podrška za Registered ECC memoriju, ASUS Enhanced Memory Profile (AEMP)
Slotovi za proširenje PCI Express x16 slot: 2x PCI Express 3.0 (x16 mode), 1x PCI Express 4.0 (x16 mode), 1x PCI Express 4.0 (x8/x4 mode)
Zvučna kartica Broj kanala: 8 (7.1)
Napomena: High Definition, PCB izolacija, Audio Shielding, Premium audio capacitors
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: SATA III 6Gbps
Broj M.2 slotova: 3
Podržani M.2 formati: 1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x4 mod), 1x 2280 (podrška za PCIe 3.0 x4 mod)
RAID: RAID 0, RAID 1, RAID 10, RAID 5
Mreža
Žična mreža (LAN): 2.5GBase-T (Gigabit)
Model: Realtek
Priključci na zadnjem panelu
Broj DisplayPort priključaka: 2
DisplayPort priključci: 2x DisplayPort 1.4
Broj HDMI priključaka: 1
HDMI priključci: 1x HDMI 2.1
Ukupno USB priključaka: 7
Ukupno USB-C priključaka: 1
USB-A priključci: 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0
USB-C priključci: 1x USB 5Gbps (3.2 Gen 1)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: BIOS Flashback taster
Unutrašnji priključci
Naponski priključci: 1 x 24 pin Main Power connector, 2x 8-pin +12V CPU Power connectors
USB-A: 1 x podrška za 2 USB 5Gbps porta, 2 x podrška za 2 USB 2.0 porta
USB-C: 1 x podrška za 1 USB 5Gbps port
Audio: 1x Front panel header
Ostali priključci: 1 x S/PDIF Out header, 1 x SPI TPM header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 2x 4-pin Chassis Fan headers
Ostale karakteristike
Podržane tehnologije: AURA Creator, AURA Sync, ASUS CPU-Z, Fan Xpert 2+
Fizičke karakteristike
Dimenzije: 244 x 244 mm
Zakonska saobraznost 36 meseci
