ASUS PRIME B650M-R

ASUS PRIME B650M-R
ASUS PRIME B650M-R
from
$12,890.00
Ex Tax: $12,890.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711387429761
  • Weight: 5.00
  • SKU: 228086
  • EAN: 4711387429761
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

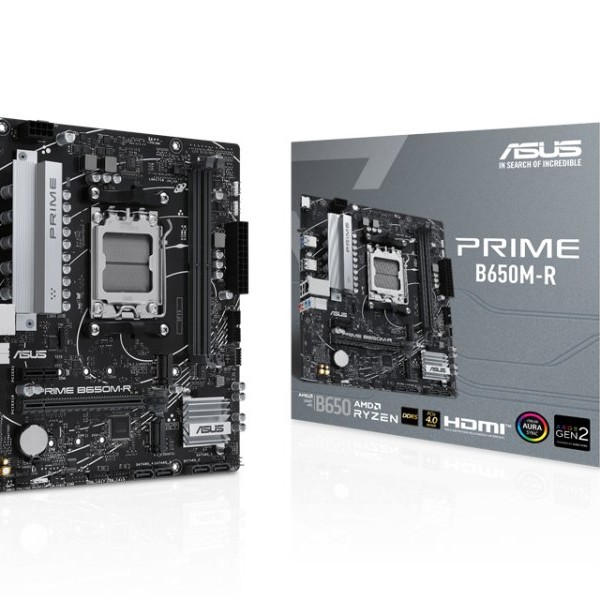

ASUS PRIME B650M-R


Tip procesora Procesorsko ležište (socket): AMD AM5
Čipset: AMD B650
Format ploče microATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 2x DIMM
Podržane memorije: 5.200MT/s, 7.200MT/s+ (O.C.)
Maksimalna ukupna memorija: 96GB
Ostale osobine: Podrška za Unbuffered ECC memoriju, Podrška za non-ECC UDIMM memory, OptiMem II, Dual Channel, Podrška za AMD EXTended Profiles for Overclocking (EXPO)
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 4.0 (x16 mode), 1x PCI Express 4.0 (x8/x4 mode)
PCI Express x1 slot: 1x PCI Express 4.0
Zvučna kartica Broj kanala: 8 (7.1)
Model: Realtek
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: 4x SATA 6GB/s
Ostali skladišni interfejs: 2 x M.2
RAID: RAID 0, RAID 1, RAID 10
Mreža
Žična mreža (LAN): 10/100/1000/2500 Mbps (2.5GbE)
Model: Realtek
Priključci na zadnjem panelu
HDMI priključci: 1x HDMI
Ukupno USB priključaka: 6
USB 3.2 priključci: 2 (Tip A) Gen1
USB 2.0 priključci: 4 (Tip A)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: BIOS Flashback taster
Unutrašnji priključci
Naponski priključci: 1x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector
USB 3.2: 1 (podrška za 2 USB 3.2 Gen 1 porta), 1 (podrška za 1 USB 3.2 Gen 1 Tip C porta)
USB 2.0: 2 (podrška za 4 USB 2.0 porta)
Audio: 1x S/PDIF izlaz, 1x Front panel header, 1x speaker header
Ostali priključci: 4 x SATA 6Gb/s, 1 x SPI TPM header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 2 x M.2 slot (Key M), 3 x Addressable Gen 2 headers, 1 x COM Port header, 2x 4-pin Chassis Fan headers
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Fizičke karakteristike
Dimenzije: 236mm x 221mm
Garancija 36 meseci
