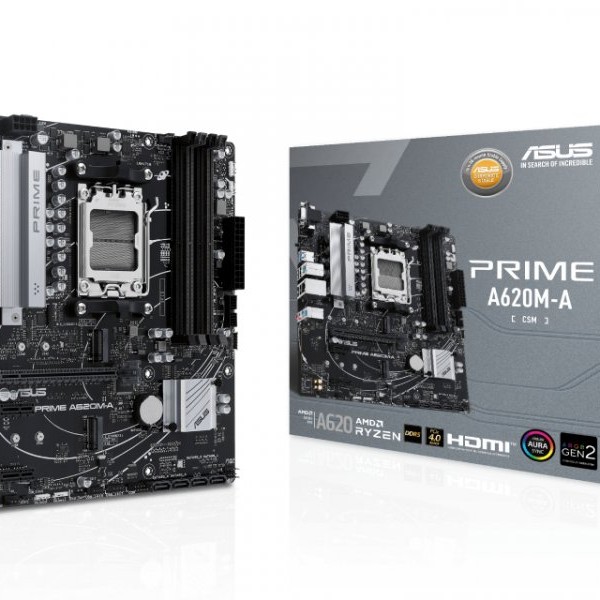

ASUS PRIME A620M-A-CSM matična ploča

ASUS PRIME A620M-A-CSM matična ploča
ASUS PRIME A620M-A-CSM matična ploča
from
$16,890.00
Ex Tax: $16,890.00
  • Stock: In Stock
  • Brand: ASUS
  • Model: 4711387176405
  • Weight: 5.00
  • SKU: 206976
  • EAN: 4711387176405
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ASUS PRIME A620M-A-CSM matična ploča


Tip procesora Procesorsko ležište (socket): AMD AM5
Format ploče  µATX
Memorija Tip memorije: DDR5
Memorijski slotovi: 4x DDR5
Podržane memorije: 6.000MT/s (O.C.), 5.800MT/s (O.C.), 7.200MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 5.200MT/s, 5.000MT/s, 4.800MT/s, 5.600MT/s (O.C.), 5.400MT/s (O.C.)
Maksimalna ukupna memorija: 192GB
Ostale osobine: OptiMem II, Podrška za AMD EXTended Profiles for Overclocking (EXPO)
Slotovi za proširenje PCI Express x16 slot: 1x PCI Express 4.0 (x16 mode)
PCI Express x1 slot: 2x PCI Express 3.0
Zvučna kartica Broj kanala: 7.1
Model: Realtek
Ostalo Skladišni interfejs
SATA priključci (ukupno): 4
SATA priključci: 4x SATA 6GB/s
Ostali skladišni interfejs: 2 x M.2
RAID: RAID 0, RAID 1, RAID 10

Priključci na zadnjem panelu
DisplayPort priključci: 1x DisplayPort
HDMI priključci: 1
VGA D-sub: 1
PS/2: 1 (tastatura ili miš)
Ukupno USB priključaka: 6
USB 3.2 priključci: 2 (Tip A) Gen1
USB 2.0 priključci: 4 (Tip A)
RJ-45 (LAN): 1
Audio: 3x 3.5mm
Ostali priključci: BIOS Flashback taster

Unutrašnji priključci
Naponski priključci: 1x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector
USB 3.2: 1 (podrška za 2 USB 3.2 Gen 1 porta), 1 (podrška za USB-C port)
USB 2.0: 2 (podrška za 4 USB 2.0 porta)
Audio: 1x Front panel header
Ostali priključci: 4 x SATA 6Gb/s, 2 x M.2 slots, 1 x S/PDIF Out header, 1 x speaker header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 14-1 pin SPI TPM header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 1 x AURA RGB header
Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

Podržane tehnologije: AURA Creator, AURA Sync, AI Noise Cancelation, DIGI+VRM, ASUS EZ Flash 3, LANGuard, Fan Xpert 2+, TurboV EVO, PC Cleaner

Dimenzije: 244mm x 244mm
Fiksirajući otvori: 8
Pakovanje: Šrafovi, 2 x SATA 6Gb/s kabl
Garancija 36 meseci
