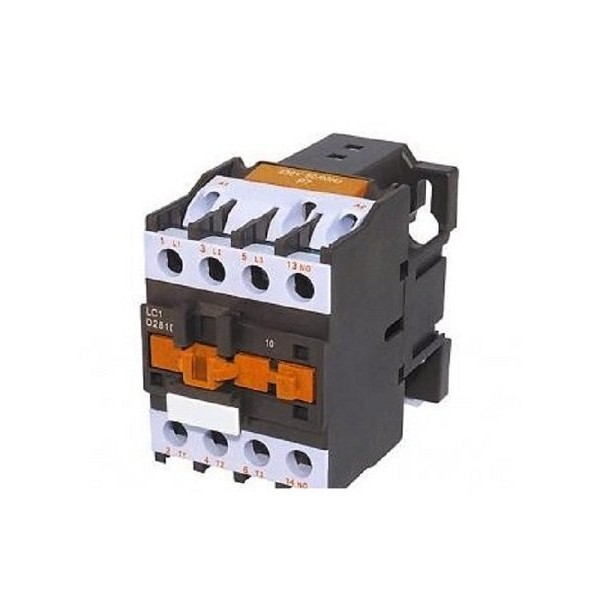

BBLINK Konektor LC1 D95 220V 50HZ

BBLINK Konektor LC1 D95 220V 50HZ
Proizvod trenutno nije dostupan
BBLINK Konektor LC1 D95 220V 50HZ
from
$4,550.00
Ex Tax: $4,550.00
  • Stock: Proizvod trenutno nije dostupan
  • Brand: BBLINK
  • Model: 8606011396617
  • Weight: 5.00
  • SKU: 107835
  • EAN: 8606011396617
  • MPN: BC
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

BBLINK Konektor LC1 D95 220V 50HZ


Tip Konektor
Karakteristike
Model / Tip: LC1 D95
Nazivni Napon: 220-660 V AC
Nazivna Struja: 95 A
Konfiguracija Kontakta: 3 P + 1 NO + 1 NC
Nazivni Impulsni Napon (Uimp): 6 kV
Presek Provodnika: 25mm2
AC3 Kapacitet 3 Faz.Motora AC3 (KW) 660/690V: 45
AC3 Kapacitet 3 Faz.Motora AC3 (KW) 380/400V: 45
AC3 Kapacitet 3 Faz.Motora AC3 (KW) 220/230V: 25
Mehanička Trajnost: 500 000 ciklusa
Električna Trajnost: 500 000 ciklusa
Dimenzije: 85 x 123 x 125mm
Način / Tip Montaže: DIN šina (35mm) / pomoću vijaka za površinu
Temperatura Okruženja (ºC): -5 °C do +50 °C
IP Zaštita: IP 20
Osnovno Pakovanje: 1 kom
Transportno Pakovanje: 16 kom


Zagarantovana sva prava po Zakonu o zaštiti potrošača.

Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji proizvoda.
